ModeSLogger version 4.0

Joining

The only way to get a username and password for this site is by sharing your SBS-1, Radarbox, Aurora Virtual Radar or Beast data. You can choose between two options: on-line or off-line.
    On-line
     By running the ModeSLogger software all the hex codes and call signs you receive will be forwarded to this website real-time.
    Off-line
     The ModeSLogger offline software will generate a logfile from your database. You can make an export from your whole database or from a specific period.
     Visit the following links for the offline software for Radarbox off-line or SBS-1 off-line.
     The offline version for the Aurora is not available yet.

Tips

    Location (1)
     You donít have to share your data with your exact location. You can give an indication of your location. (E.g. Italy, G, IT or East Coast, UK)
    Location (2)
     Much of the site is automated. Please take a look at list for Abbreviations For Country and use the correct abbreviations for your country. This will help to show your logs at the correct page.

What do you need?

- Radarbox version 3 or SBS-1
- Windows XP/Vista/7.
- .Net Framework 3.5 Service Pack 1.)
(Click here to download .Net Framework 3.5 Service Pack 1.)


How to get started On-line

Just a quick and dirty note to get ModeSLogger Version 4.0 working.

Make sure that any older Mysql Connector software (before 6.5.x) is removed. You can remove older MySql Connector Software via Control Panel, add/remove programs


Step 1 Download the software from: here

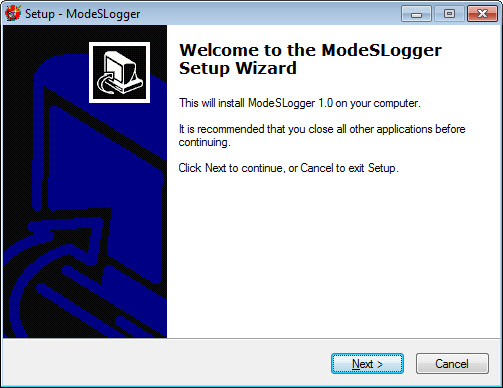

Step 2 Run the Setup.exe

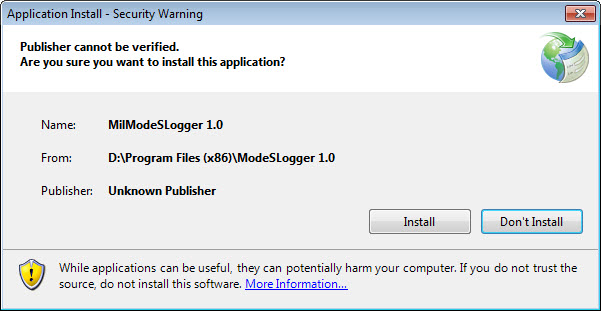

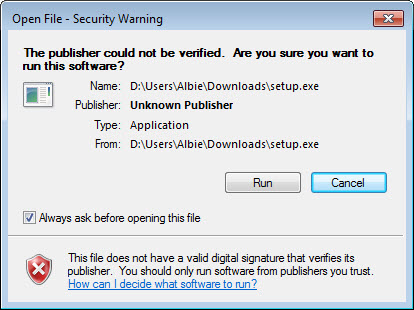

    You could get the follwing warning like:
    You can click the Run button.

Step 3 Click on Next, Next, check options, Next, Install, Finish

Step 4

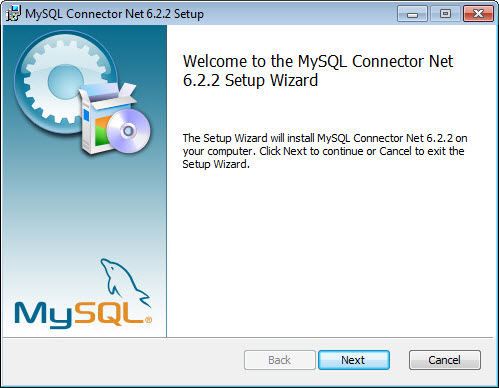

Install the MySql Connector net 6.4.4: Click on Next, Typical , Install,

Finish


Step 5 Secondly install ModeSLogger software: Click on Install,

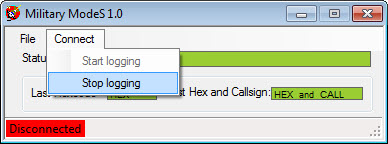

Step 1 Click Connect, Stop Logging

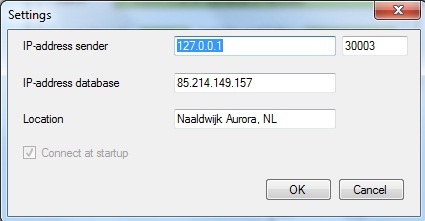

Step 2 Click File, Settings

Step 3 Enter your location.
    - Enter Locationame komma space Abbreviations --> Naaldwijk, NL
    - Check Abbreviations For Country.

Step 4 Click on OK.

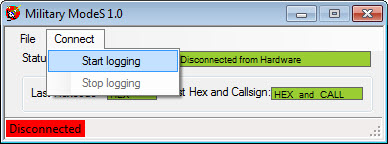

Step 5 Click on Connect, Start Logging .

With the first hex codes arriving at the site your location should be visible at the website. Check Locations on-line to see if you are feeding the site.




Possible errors during installation

Solution:
- Download .Net Framework 3.5 Service Pack 1.)
- (Click here to download .Net Framework 3.5 Service Pack 1.)
- Run Setup.exe again

Solution:
- Download .Net Framework 3.5 Service Pack 1.)
- (Click here to download .Net Framework 3.5 Service Pack 1.)
- Run Setup.exe again

Solution:

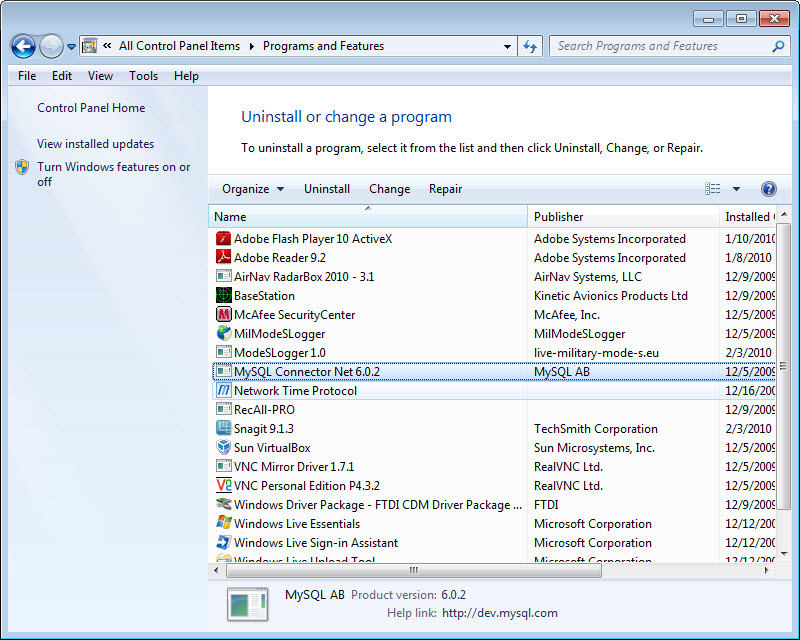

- Remove older Mysql Connector via Control Panel:




Release Notes

4.0
  • New Connector software installed
  • Solved Freesing of the application
  • Solved problem with database connections
  • Setup issues solved
  • Settings dialog will appear if no location name is set

    3.4
  • New Connector software installed
  • Plane will reappear on the website after 20 minutes instead of 10 minutes.

    2.4b
  • Minimize button will mimimize to taskbar
  • Added new button to minimize the program to the system tray
  • No build in pause between insert commands

    2.4a
  • New item on status bar: status of last insert will be displayed.
  • Application will restart after 5 minutes without a connection to the database.

    2.4
  • Minimizing application will place application in the system tray.

    2.1
  • Corrected error that some hexcodes without squawk, alt or callsign didn't make it to the website

    2.0
  • Software now also works with Aurora Virtual Radar 3D!
  • IP address database changed to new server.
  • Uses less conection to the database.
  • Decodes more hits to the database.
  • Collects ADS-B information.

    1.1a
  • Fix for Radarbox users. Now collects Squawk and Altitude

    1.1
  • No restart every 12 hours.
  • Sending Squawk and Altitude
