How to use the SBSMillog Offline tool

The SBSMillog Offline tool generate log file which can be inserted very easy into the website database.

If you cannot be online 24/7 or you were on holiday without internet and you took the sbs-1 with you this tool can generate logs afterwards.



Better be save......

I never had any complains about this tool, but it is wise to work with a copy of the database. Using this tool in combination with a running basestation could hang basestation for a few seconds. (depending how large the export will be).

Make a copy of the basestation.sqb file

The Basestation.sqb file is the database were all your information is stored. To make a copy of this file you must shutdown Basestation.



  1. Shutdown Basestation and open the Explorer

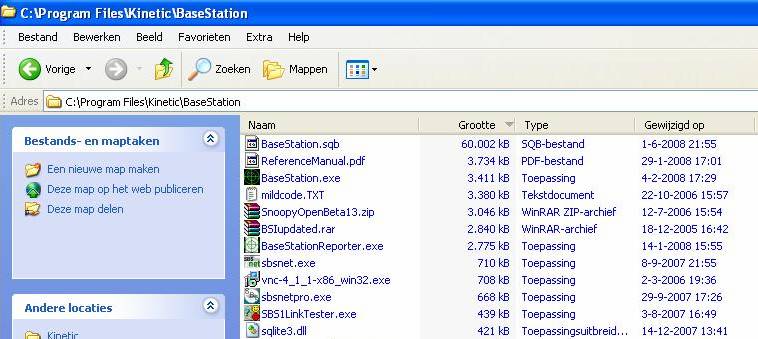

  1. Search for the map C:\Program files\Kinetic\BaseStation







  1. Click on the file Basestation.Sqb and click on Edit, Copy



You can place the copy of the file everywhere you like (as long as you can find it;-)). In this example I will place the copy in the same map.

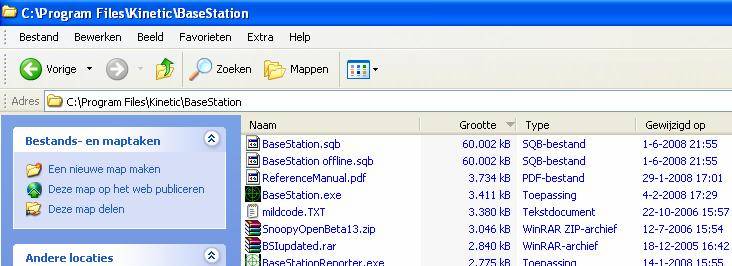

  1. Click on Edit, Paste



The file will be copied. In this example I renamed the file to BaseStation offline.sqb.





Run the Tool

How the tool is installed can be read on the download page. In this example I assume you already have installed the tool.



  1. Start the SBSMillog Offline tool



You will see the next screen:





This screens suggest to make a copy of the database. If you follow this guide you already have done this.



  1. Click the OK button



A screen, just like the one below, will appear.





First we have to tell the too where to find the database.



  1. Click on the button with the three dots after ‘Location Basestation.sqb’



A new screen will appear.

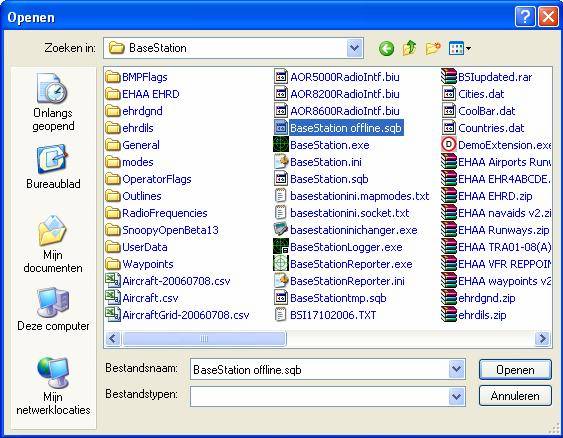

  1. Search for the location were you placed your copy and select the file and click on Open



Your screen should look something like this:





Now we have to tell the tool were the log files should be written to.



  1. Click on the button with the three dots after ‘Location Log Files’

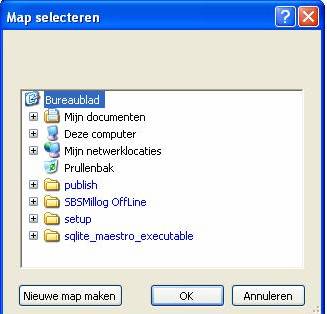

Again a new window is opened.





  1. Select a location and click on OK





  1. Enter the name of your location







If you have shared your data before, please use the same name.



We are almost there. The tool will give you the option to export the whole database or just a period.



Make an export from the whole data

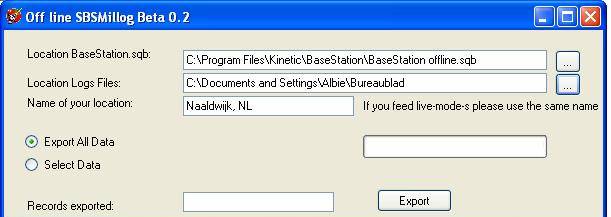

  1. Select the option Export All Data





  1. Click the Export button



Depending on the size of the database this could take a while.



If the Export is finished the next screen will appear.





  1. Click the OK button



The result of this tool is a file (or more files) with names like “2008 OfflineSBSlog.csv”.



If you export the whole data those files can become very large. I advise to zip or rar the files and mail them to me.



Make an export over a specific period

  1. Select the option Select Date





Two new option will appear: the begin Date and the End date. With those two option you can define a specific period.

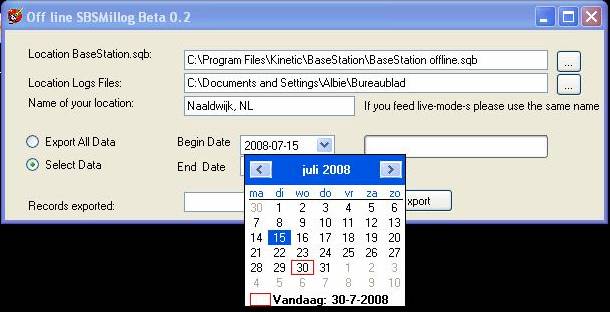

  1. Click on the pull down menu after Begin Date



The next screen will appear.





  1. Select the Begin Date



  1. Do the same for the End Date



  1. Click on the Export Button



  1. Click on the OK-button



The result of this tool is a file (or more files) with names like “2008 OfflineSBSlog.csv”.



If you export the whole data those files can become very large. I advise to zip or rar the files and mail them to me.



For questions or suggestions please mail me.



Albert
